Technical data
| Excavator | 100 - 150 t |
|---|---|
| Weight with top bracket | 13000 kg |
| Weight without top bracket | 11000 kg |
| Working pressure | 30 - 32 MPa |
| Max. return pressure | 0,6 MPa |
| Required amount of oil | 500 L/min |
| Max. case drain pressure | 0,4 MPa |
| Frequency | 1000 1/min |
| Dimensions (L x W x H) | 400 x 132 x 282 cm |
| Re-Action Power battery pressure | 0,6 MPa |
Back to overview

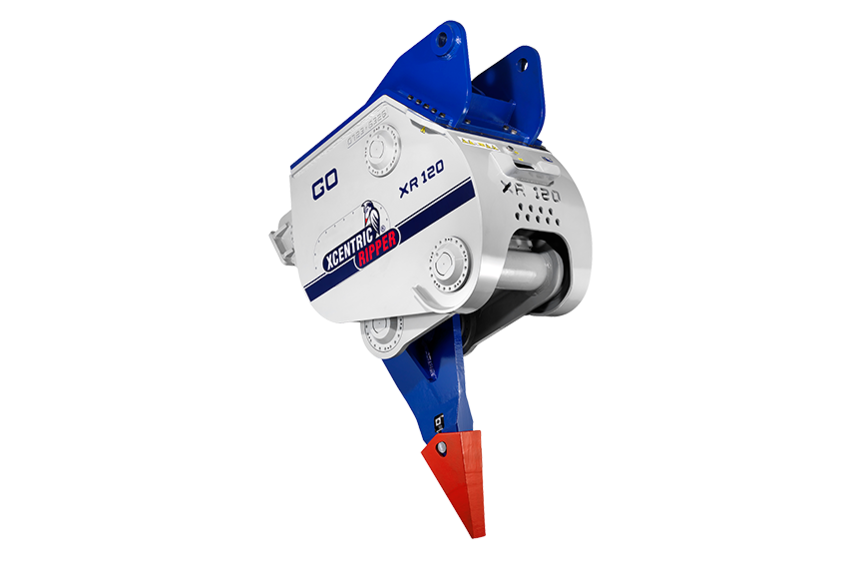

Ripper
Model
XR 120 -3M
Brand
