Technical data
| Excavator | 18 - 24 t |
|---|---|
| Weight with top bracket | 2500 kg |
| Weight without top bracket | 2200 kg |
| Working pressure | 18 - 20 MPa |
| Max. return pressure | 0,6 MPa |
| Required amount of oil | 160 L/min |
| Max. case drain pressure | 0,4 MPa |
| Frequency | 1400 1/min |
| Dimensions (L x W x H) | 240 x 78 x 175 cm |
| Re-Action Power battery pressure | 0,5 MPa |
Back to overview

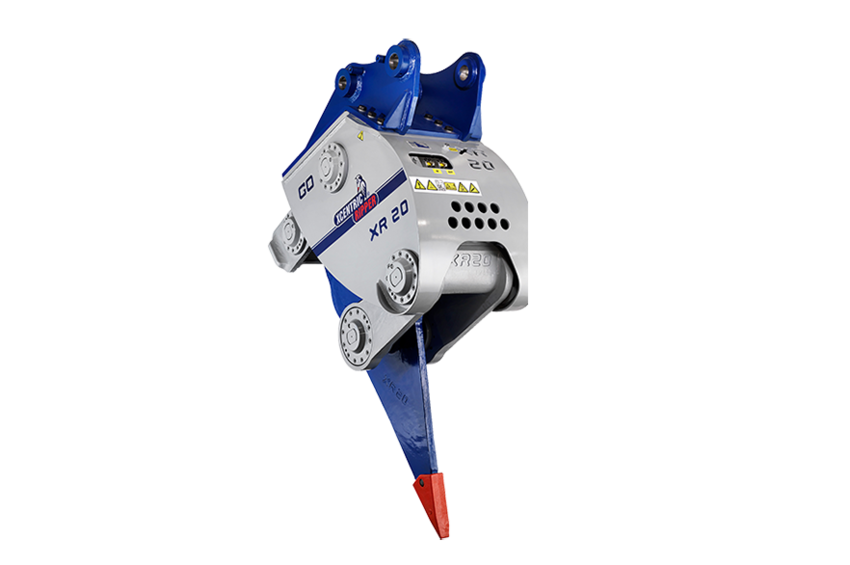

Ripper
Model
XR 20
Brand
