Technical data
| Excavator | 24 - 30 t |
|---|---|
| Weight with top bracket | 3300 kg |
| Weight without top bracket | 2800 kg |
| Working pressure | 22 - 24 MPa |
| Max. return pressure | 0,6 MPa |
| Required amount of oil | 180 L/min |
| Max. case drain pressure | 0,4 MPa |
| Frequency | 1300 1/min |
| Dimensions (L x W x H) | 280 x 85 x 160 cm |
| Re-Action Power battery pressure | 0,5 MPa |
Back to overview

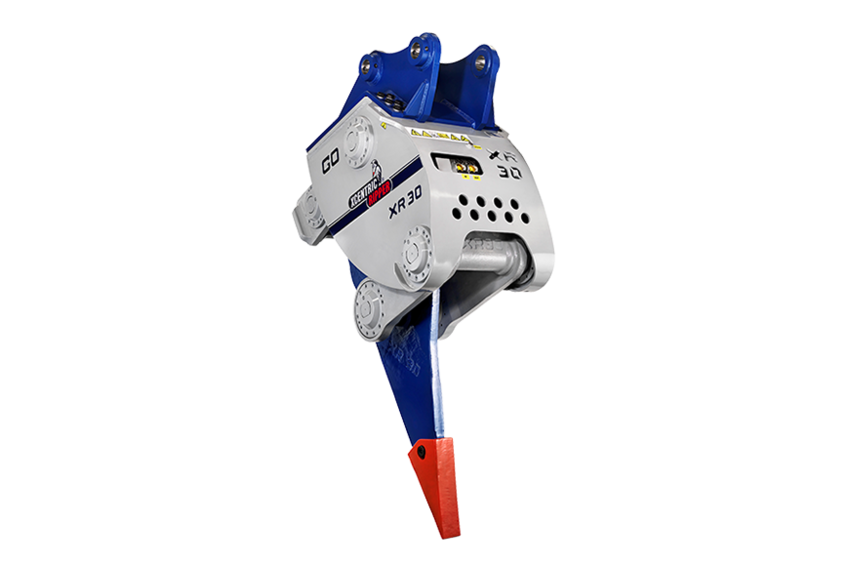

Ripper
Model
XR 30
Brand
