Technical data
| Excavator | 32 - 40 t |
|---|---|
| Weight with top bracket | 4200 kg |
| Weight without top bracket | 3600 kg |
| Working pressure | 22 - 24 MPa |
| Max. return pressure | 0,6 MPa |
| Required amount of oil | 200 L/min |
| Max. case drain pressure | 0,4 MPa |
| Frequency | 1200 1/min |
| Dimensions (L x W x H) | 310 x 90 x 184 cm |
| Re-Action Power battery pressure | 0,5 MPa |
Back to overview

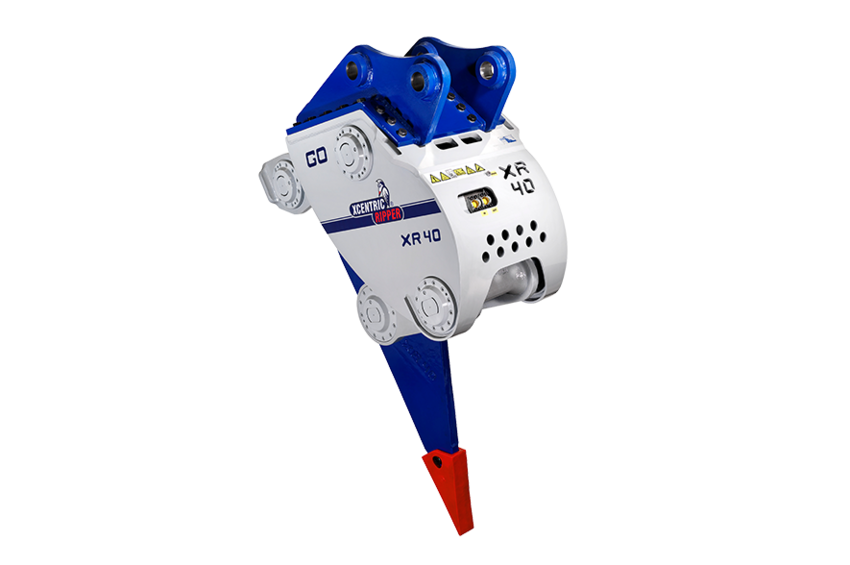

Ripper
Model
XR 40
Brand
