Technical data
| Excavator | 55 - 70 t |
|---|---|
| Weight with top bracket | 7000 kg |
| Weight without top bracket | 5700 kg |
| Working pressure | 26 - 28 MPa |
| Max. return pressure | 0,6 MPa |
| Required amount of oil | 280 L/min |
| Max. case drain pressure | 0,4 MPa |
| Frequency | 1000 1/min |
| Dimensions (L x W x H) | 345 x 110 x 217 cm |
| Re-Action Power battery pressure | 0,25 MPa |
Back to overview

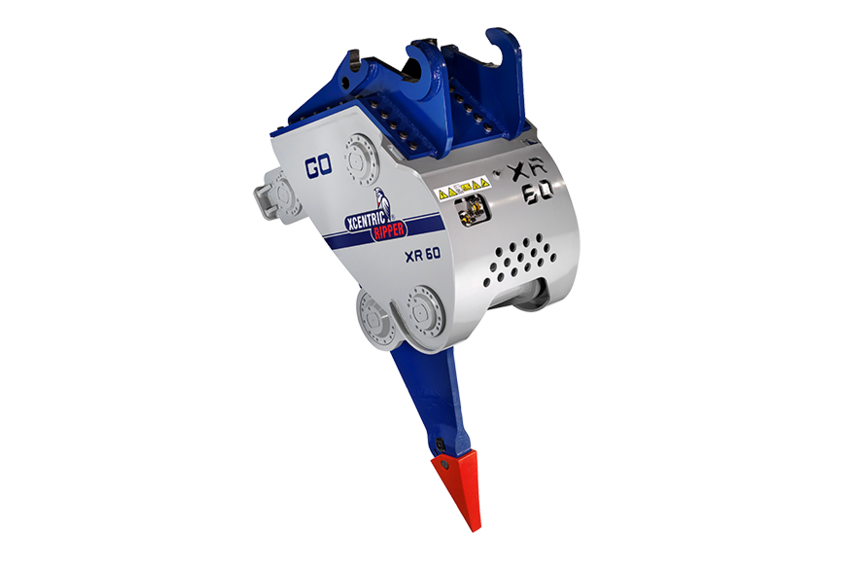

Ripper
Model
XR 60
Brand
