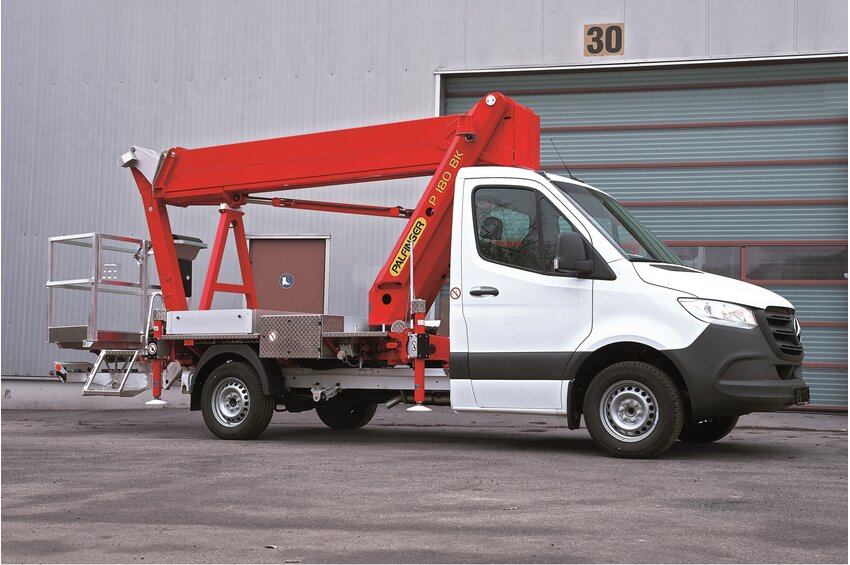

P 180 BK

SMALL AND COMPACT

The P 180 BK with 300 kg cage load is the smallest stage in the Light NX class. The control system via the well-known Light NX control panel and gimmicks such as the memory and home functions make operation of the working platform very easy. The P 180 BK is ideal for the rental business as well as for municipalities and tree cutting.

• Stabiliser operation from the base for easy and safe support
• Robust aluminium workman basket with 300 kg cage load and integrated anti-squeeze protection function in the knee rail
• Automatic support stabilising with wheel clearance monitoring
• Flat substructure under the workman basket allows users to get as close to obstacles as possible
• Can be mounted on various chassis (3,5 t - 7,5 t)

Technical data

product.detail.palfinger.maxHeightofWork 17,6 n
product.detail.palfinger.maxbasketfloorheight 15,6 m
product.detail.palfinger.maxhorizontaloutreach 13,0 m
product.detail.palfinger.maxbasketcapacity 300 kg
product.detail.palfinger.workmanbasket 1,4 x 0,7 x 1,1 m
product.detail.palfinger.schwenkbereichDrehtisch 500°
product.detail.palfinger.hoeheTransportstellung 3,05 m
product.detail.palfinger.breiteTransportstellung 2,22 m
Back to overview
Light Class
Model

P 180 BK

Brand

Palfinger

Interested? Find contact
