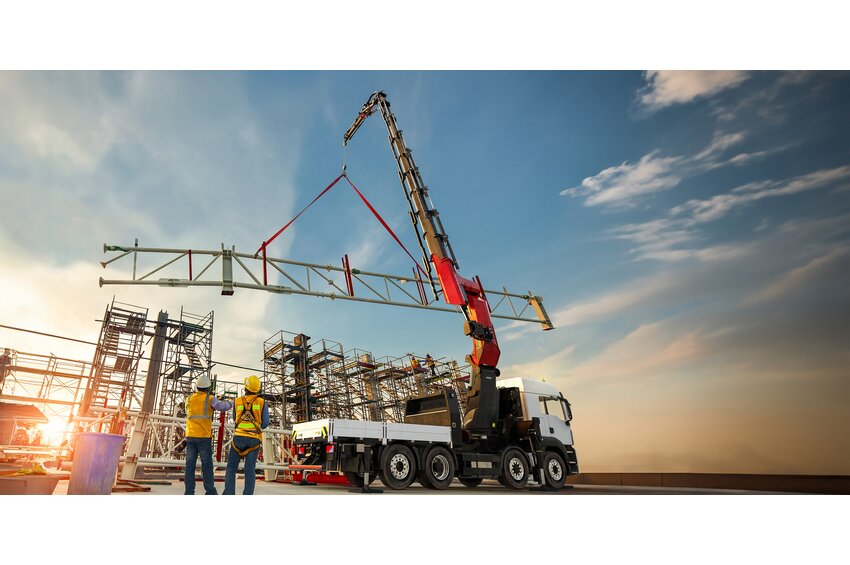

PK 1650 TEC

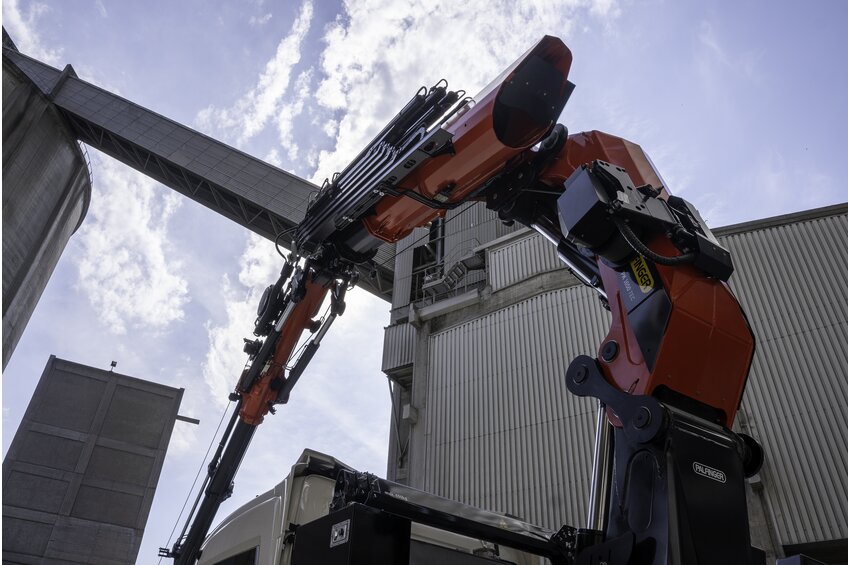

- Very stiff and light boom system thanks to P-Profile

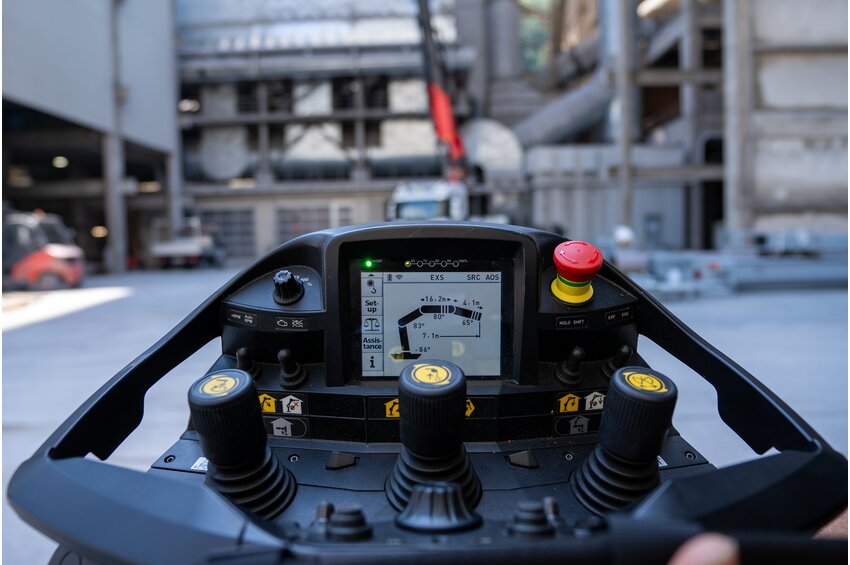

- More intelligent operation with PALTRONIC 180 control electronics
- Extra smooth control thanks to LX-6 control valve
- Additional applications with Power Link Plus
- More efficiency with fly-jib due to DPS-C
- Maximum utilisation of the working range thanks to extended HPSC
- Increased comfort and safety due to Soft Stop
- Practical and attractive due to Functional Design
Technical data
| Max. lifting moment | 124,8 mt |
|---|---|
| Max. lifting capacity | 32000 kg |
| Max. hydraulic outreach | 21,0 m |
| Slewing angle | ∞ |

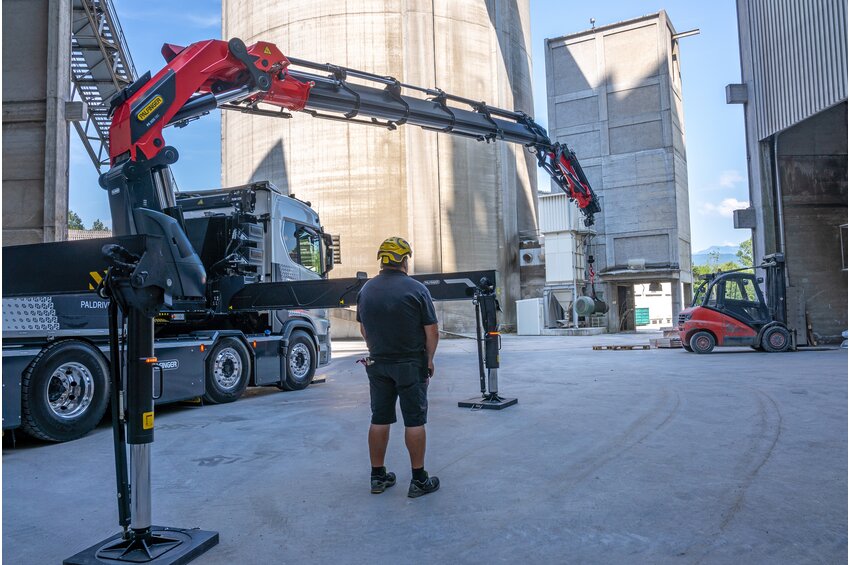

| Stabiliser spread (std) | 10.0 m |
| Max. operating pressure | 385 bar |
| Pump capacity | 2 x 100 - 120 l/m |
| Weight | 11610 t |
| Slewing torque with 2 gears | 12,0 mt |

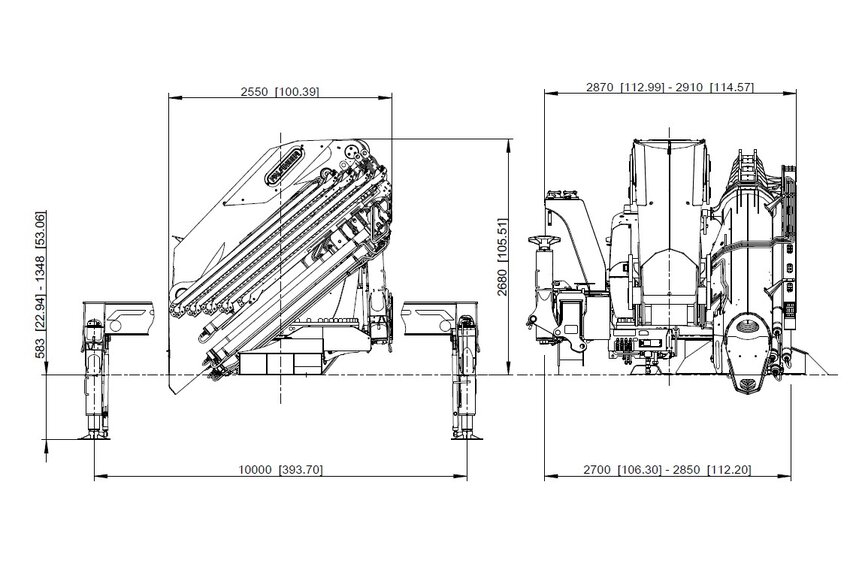

Technical data

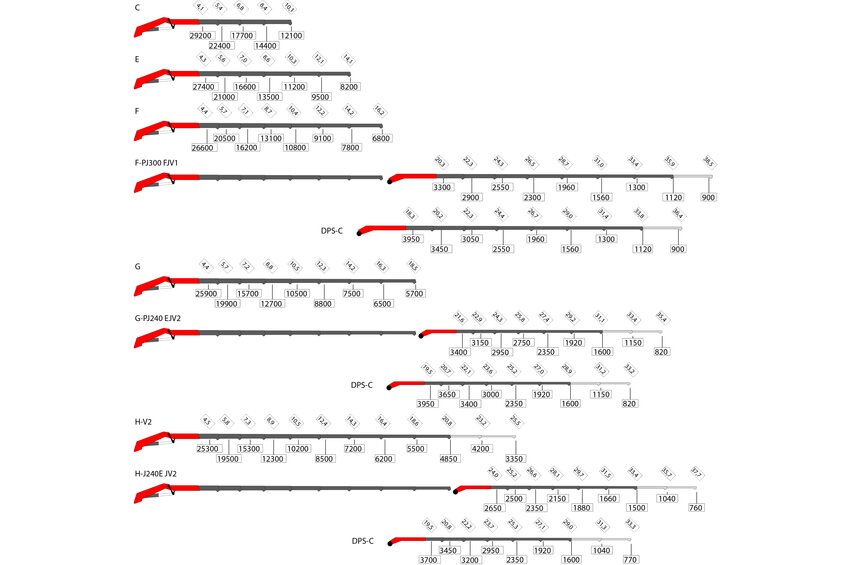

| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C | 121.6 mt | 10.2 m | ∞ ° | 12.0 mt | 38.5 Mpa | 2x100-120 l/min | 11510 kg | 2680 mm | 2550 mm | 2700 mm | 10100 mm | - | 12100 kg |
| E | 117.0 mt | 14.2 m | ∞ ° | 12.0 mt | 38.5 Mpa | 2x100-120 l/min | 12230 kg | 2680 mm | 2550 mm | 2700 mm | 14100 mm | - | 8200 kg |
| F | 115.9 mt | 16.4 m | ∞ ° | 12.0 mt | 38.5 Mpa | 2x100-120 l/min | 12660 kg | 2680 mm | 2550 mm | 2700 mm | 16200 mm | - | 8800 kg |
| G | 115.2 mt | 18.6 m | ∞ ° | 12.0 mt | 38.5 Mpa | 2x100-120 l/min | 12960 kg | 2680 mm | 2550 mm | 2850 mm | 18500 mm | - | 5700 kg |
| H | 114.6 mt | 21.0 m | ∞ ° | 12.0 mt | 38.5 Mpa | 2x100-120 l/min | 13200 kg | 2680 mm | 2550 mm | 2850 mm | 20800 mm | - | 4900 kg |
