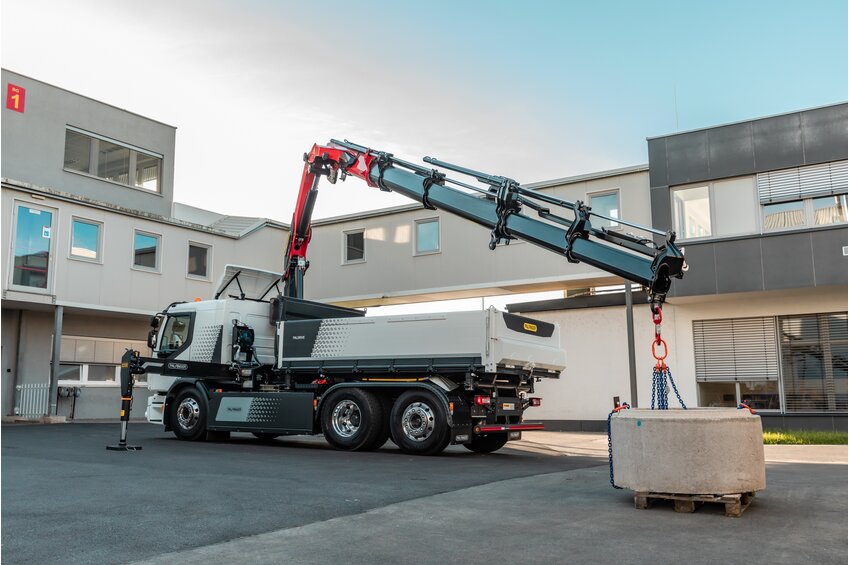

PK 250 TEC
- More intelligent operation with PALTRONIC 180 control electronics
- Extra smooth control thanks to LX-6 control valve

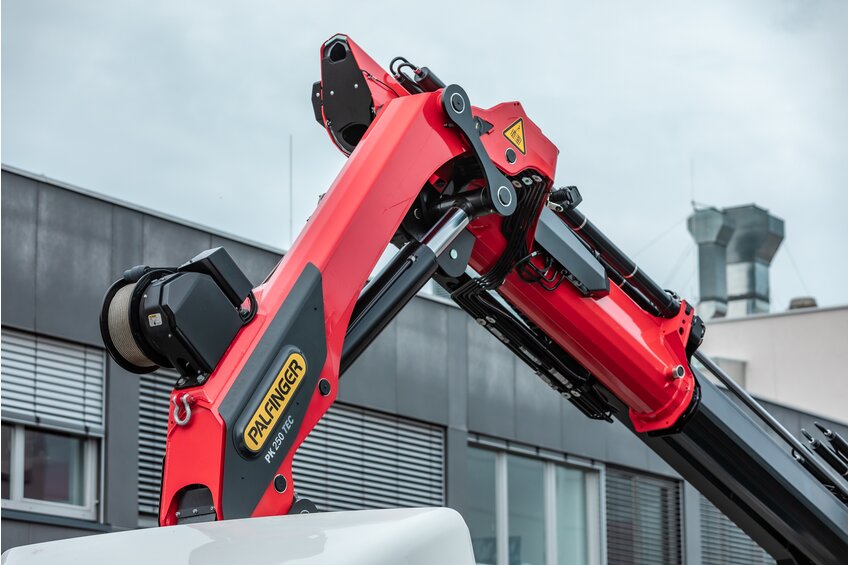

- Very stiff and light boom system thanks to P-Profile
- More efficient and faster due to continuous slewing system
- High user friendliness due to in-house developed radio remote control PALcom P7
- Maximum utilisation of the working range thanks to extended HPSC
- More lifting power due to S-HPLS
- Practical and attractive due to Functional Design
Technical data
| Max. lifting moment | 23,5 mt |
|---|---|
| Max. lifting capacity | 7100 kg |
| Max. hydraulic outreach | 20,0 m |
| Slewing angle | ∞ |
| Slewing torque with 1 gear | 2,5 mt |
| Stabiliser spread (std) | 5.6 m |
| Fitting space required (std) | 1,05 m |
| Width folded | 2,55 m |
| Max. operating pressure | 385 bar |
| Pump capacity | 80 - 100 l/m |
| Weight | 2525 t |
| Max. outreach (with fly jip) | 28,2 m |

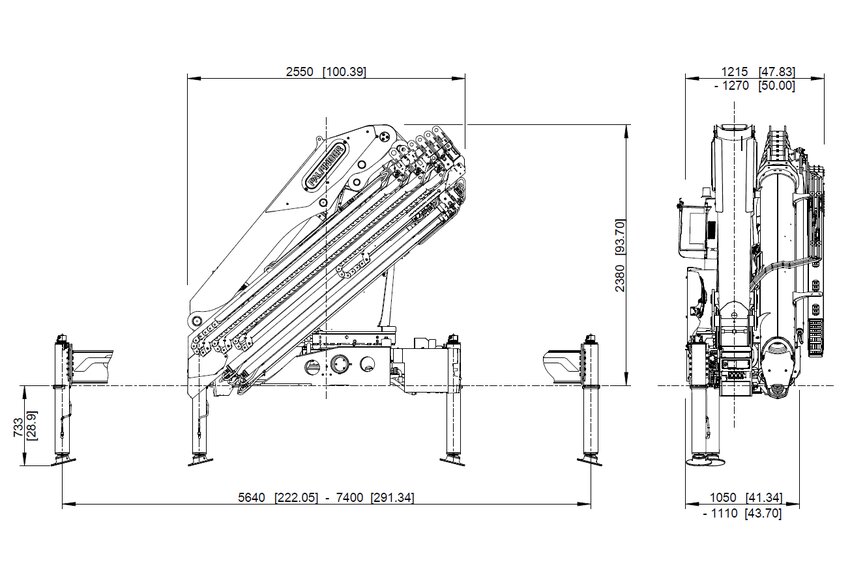

Technical data

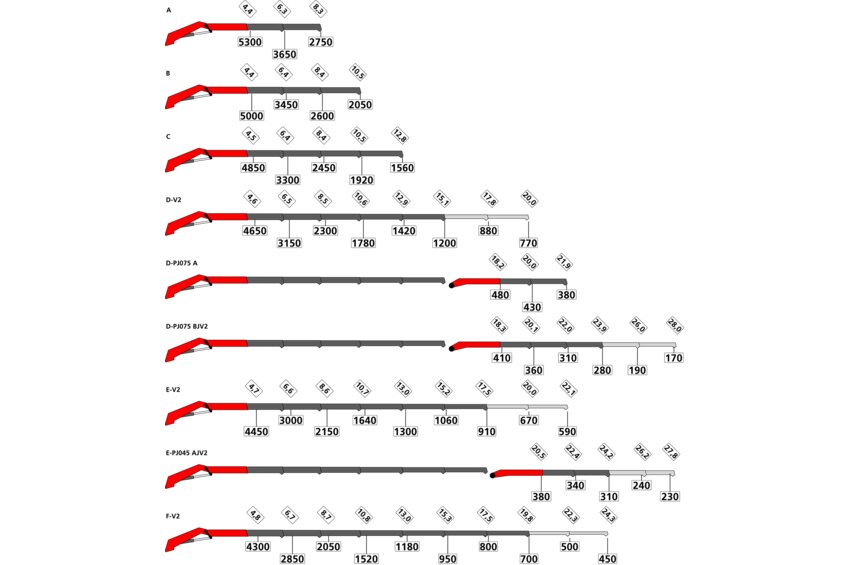

| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 22.8 mt | 8.4 m | ∞ ° | 2.5 mt | 38.5 Mpa | 80-100 l/min | 2570 kg | 2380 mm | 2550 mm | 1050 mm | - | - | - |
| B | 22.4 mt | 10.6 m | ∞ ° | 2.5 mt | 38.5 Mpa | 80-100 l/min | 2720 kg | 2380 mm | 2550 mm | 1050 mm | - | - | - |
| C | 21.9 mt | 13.0 m | ∞ ° | 2.5 mt | 38.5 Mpa | 80-100 l/min | 2850 kg | 2380 mm | 2550 mm | 1050 mm | - | - | - |
| D | 21.4 mt | 15.3 m | ∞ ° | 2.5 mt | 38.5 Mpa | 80-100 l/min | 3000 kg | 2380 mm | 2550 mm | 1050 mm | - | - | - |
| E | 21.0 mt | 17.6 m | ∞ ° | 2.5 mt | 38.5 Mpa | 80-100 l/min | 3130 kg | 2380 mm | 2550 mm | 1050 mm | - | - | -2 m |
| F | 20.6 mt | 20.0 m | ∞ ° | 2.5 mt | 38.5 Mpa | 80-100 l/min | 3250 kg | 2380 mm | 2550 mm | 1110 mm | - | - | -2 m |
