PK 26002 EH High Performance
The E-HPLS and the enormous reach opens up a wide range of applications
- More efficiency with fly jib due to DPS Plus
- Perfect appearance and the highest value retention due to coating technology
- Additional applications with Power Link Plus
- Increased operating times due to low-maintenance extension system
- High operator friendliness thanks to optional radio remote control
Technical data
| Max. lifting moment | 24,9 mt |
|---|---|
| Max. lifting capacity | 8900 kg |
| Max. hydraulic outreach | 21,3 m |
| Slewing angle | 400° |
| Stabiliser spread (std) | 5.0 m |
| Width folded | 2,53 m |
| Max. operating pressure | 350 bar |
| Pump capacity | 75 - 100 l/m |
| Weight | 2583 t |
| Max. outreach (with fly jip) | 27,2 m |

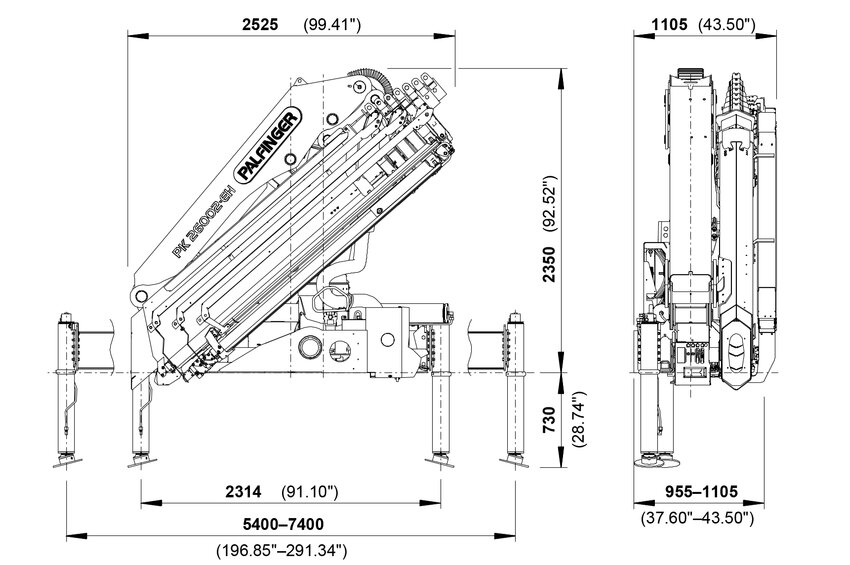

Technical data

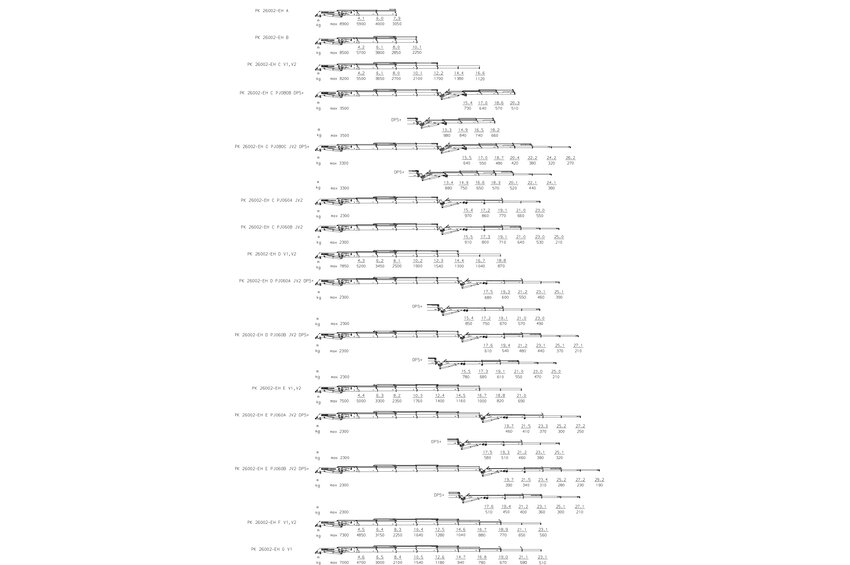

| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 24.2 mt | 8.1 m | 400 ° | 2.8 mt | 35.0 Mpa | 75-100 l/min | 2583 kg | 2350 mm | 2525 mm | 955 mm | 7880.01 mm | 8900 kg | 3000 kg |
| B | 23.6 mt | 10.2 m | 400 ° | 2.8 mt | 35.0 Mpa | 75-100 l/min | 2764 kg | 2350 mm | 2525 mm | 955 mm | 10060.01 mm | 8500 kg | 2200 kg |
| C | 23.1 mt | 12.4 m | 400 ° | 2.8 mt | 35.0 Mpa | 75-100 l/min | 2943 kg | 2350 mm | 2525 mm | 1030 mm | 12240.01 mm | 8200 kg | 1680 kg |
| D | 22.6 mt | 14.6 m | 400 ° | 2.8 mt | 35.0 Mpa | 75-100 l/min | 3120 kg | 2350 mm | 2525 mm | 1070 mm | 14420.01 mm | 7850 kg | 1260 kg |
| E | 22.1 mt | 16.8 m | 400 ° | 2.8 mt | 35.0 Mpa | 75-100 l/min | 3266 kg | 2350 mm | 2525 mm | 1105 mm | 16650.01 mm | 7500 kg | 970 kg |
| F | 21.7 mt | 19.1 m | 400 ° | 2.8 mt | 35.0 Mpa | 75-100 l/min | 3379 kg | 2350 mm | 2525 mm | 1105 mm | 18880.01 mm | 7300 kg | 750 kg |
| G | 21.4 mt | 21.3 m | 400 ° | 2.8 mt | 35.0 Mpa | 75-100 l/min | 3488 kg | 2350 mm | 2525 mm | 1105 mm | 21110.01 mm | 7000 kg | 570 kg |
