PK 63002 EH High Performance

The continuous slewing system increases the efficiency in use during the crane's entire lifetime.

  • More effcient and faster due to continuous slewing system
  • More lifting power due to E-HPLS
  • Practical and attractive due to Functional Design
  • High value retention thanks to coating technology

Technical data
Max. lifting moment 59,4 mt
Max. lifting capacity 22000 kg
Max. hydraulic outreach 20,4 m
Max. manual outreach 25,1 m
Slewing angle ∞
Slewing torque with 1 gear 4,5 mt
Stabiliser spread (std) 8.6 m
Max. operating pressure 350 bar
Pump capacity 80 - 100 l/min l/m
Weight 5040 t
Slewing torque with 2 gears 7,0 mt
Max. outreach (with fly jip) 30,4 m

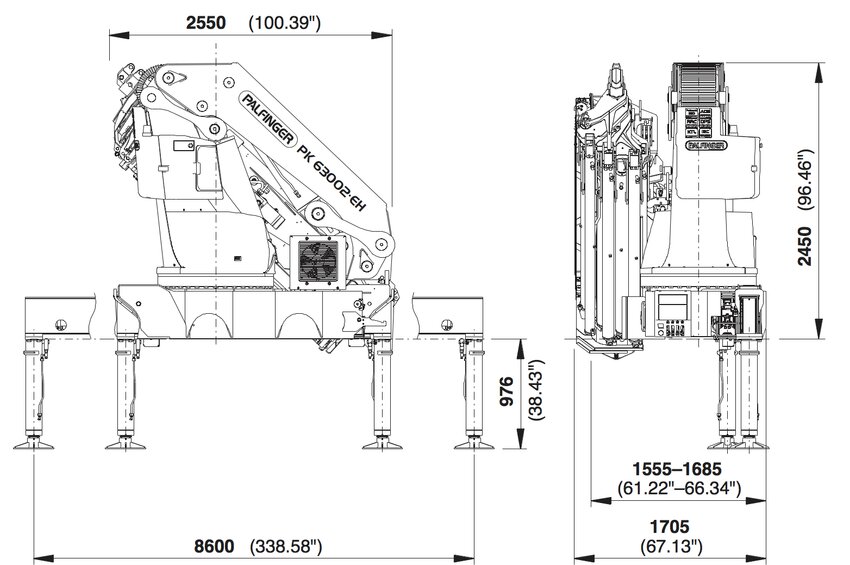

Technical data

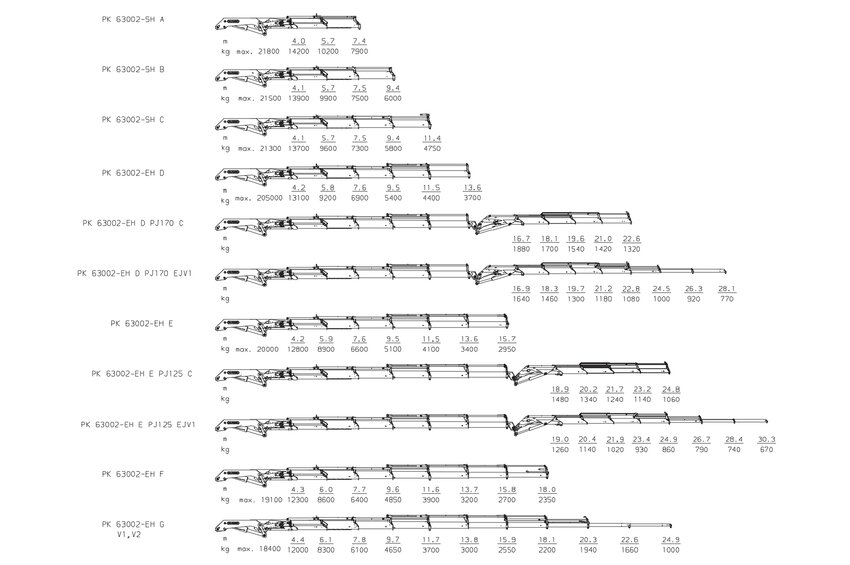

Lifting moment Outreach Slewing angle Slewing torque Pressure Pump capacity Crane weight Crane height Crane width Installation width Max stroke length Max. lifting capacity Load vertical
A 57.2 mt 7.6 m ∞ ° 4.5 / 7.0 mt 35.0 Mpa 80-100 l/min 5040 kg 2450 mm 2550 mm 1555 mm 7433.45 mm 21800 kg 7900 kg
B 56.2 mt 9.5 m ∞ ° 4.5 / 7.0 mt 35.0 Mpa 80-100 l/min 5384 kg 2450 mm 2550 mm 1555 mm 9360.45 mm 21500 kg 6000 kg
C 55.4 mt 11.5 m ∞ ° 4.5 / 7.0 mt 35.0 Mpa 80-100 l/min 5676 kg 2450 mm 2550 mm 1555 mm 11365.45 mm 21300 kg 4750 kg
D 54.5 mt 13.7 m ∞ ° 7.0 mt 35.0 Mpa 80-100 l/min 6096 kg 2450 mm 2550 mm 1555 mm 13575.45 mm 20500 kg 3700 kg
E 53.6 mt 15.9 m ∞ ° 7.0 mt 35.0 Mpa 80-100 l/min 6404 kg 2450 mm 2550 mm 1580 mm 15708.45 mm 20000 kg 2950 kg
F 53.0 mt 18.1 m ∞ ° 7.0 mt 35.0 Mpa 80-100 l/min 6630 kg 2450 mm 2550 mm 1685 mm 17958.45 mm 19100 kg 2350 kg
G 52.6 mt 20.4 m ∞ ° 7.0 mt 35.0 Mpa 80-100 l/min 6804 kg 2450 mm 2550 mm 1685 mm 20268.45 mm 18400 kg 1940 kg
