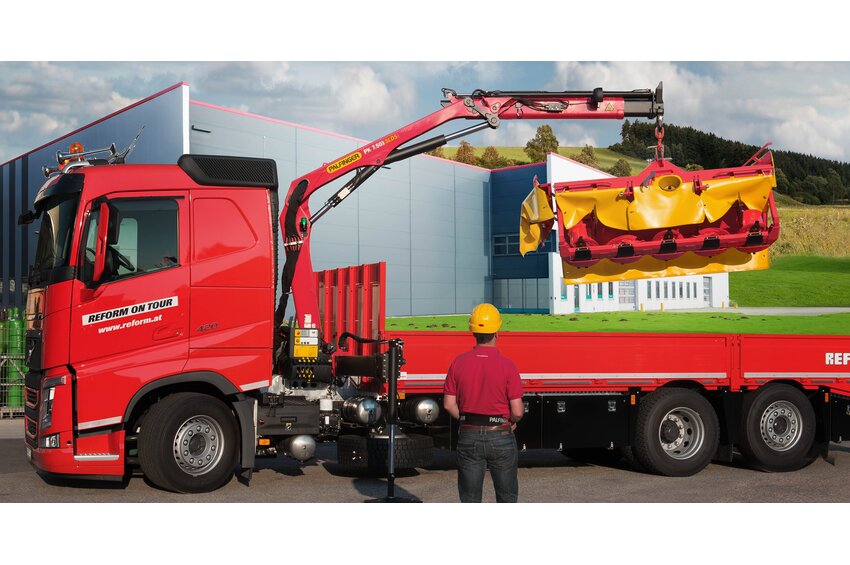

PK 7.501 SLD 5
HIGHER PAYLOAD DUE TO INTELLIGENT LIGHTWEIGHT DESIGN
- Shorter load cycle times due to High Speed Extention
- High operator friendliness thanks to radio remote control
- Maximum utilisation of the working range due to HPSC
- More lifting power due to A-HPLS
Technical data
| Max. lifting moment | 6,8 mt |
|---|---|
| Max. lifting capacity | 3300 kg |
| Max. hydraulic outreach | 11,2 m |
| Max. manual outreach | 12,9 m |
| Slewing angle | 400° |
| Stabiliser spread (std) | 3.0 m |
| Width folded | 2,20 m |
| Max. operating pressure | 360 bar |
| Pump capacity | 30 - 40 l/m |
| Weight | 780 t |

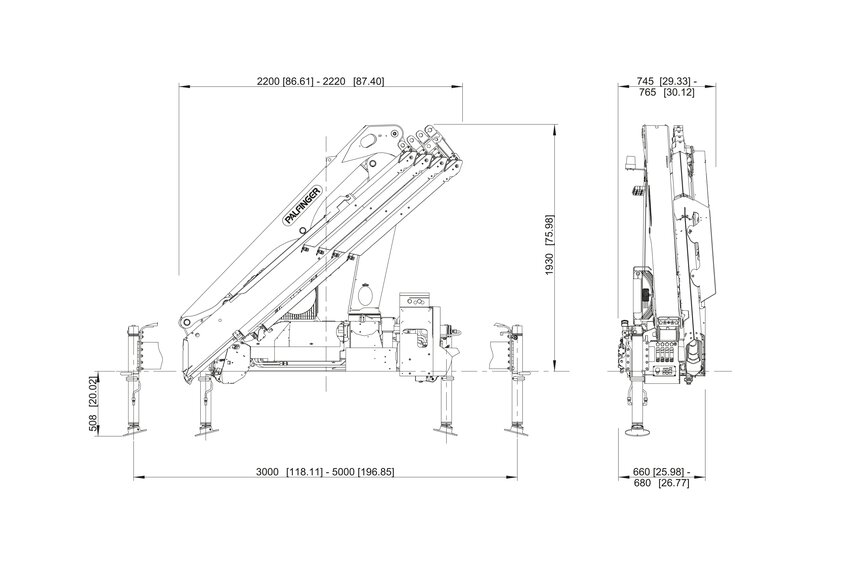

Technical data

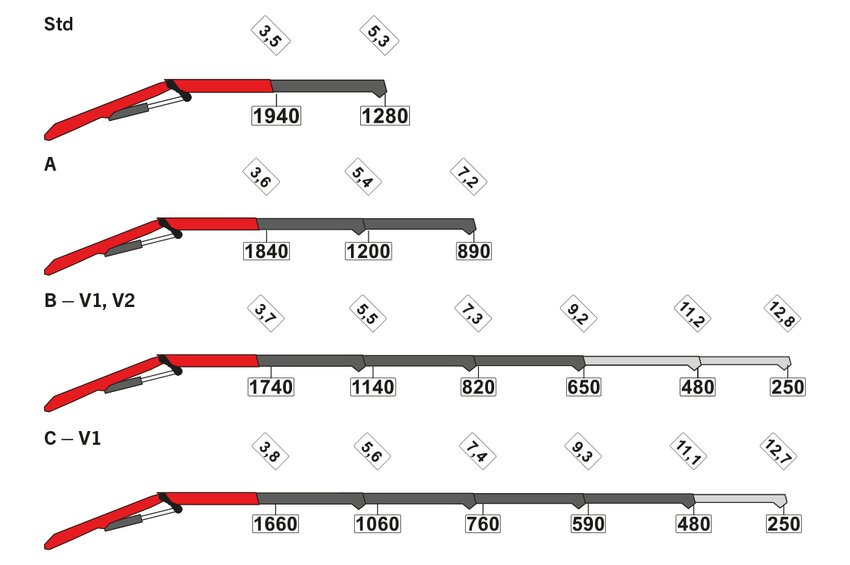

| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Std | 6.8 mt | 5.5 m | 400 ° | 0.8 mt | 36.0 Mpa | 30-40 l/min | 780 kg | 1930 mm | 2200 mm | 660 mm | 5300 mm | - | 1280 kg |
| A | 6.6 mt | 7.4 m | 400 ° | 0.8 mt | 36.0 Mpa | 30-40 l/min | 860 kg | 1930 mm | 1930 mm | 660 mm | 7200 mm | - | 890 kg |
| B | 6.4 mt | 9.3 m | 400 ° | 0.8 mt | 36.0 Mpa | 30-40 l/min | 930 kg | 1930 mm | 2200 mm | 660 mm | 9200 mm | - | 650 kg |
| C | 6.4 mt | 11.2 m | 400 ° | 0.8 mt | 36.0 Mpa | 30-40 l/min | 930 kg | 1930 mm | 2200 mm | 660 mm | 11100 mm | - | 480 kg |
