PK 78002 SH High Performance

The Dual Power System for high outreach as well as for heavy duty operation.

  • Maximum reliability due to PAL 150
  • More efficiency with fly jib due to DPS Plus
  • Increased operating times due to low-maintenance extension system
  • Practical and attractive due to Functional Design
  • Continous slewing for increased efficiency and speed

Technical data
Max. lifting moment 74,7 mt
Max. lifting capacity 25000 kg
Max. hydraulic outreach 20,4 m
Max. manual outreach 25,1 m
Slewing angle ∞
Slewing torque with 1 gear 4,5 mt
Stabiliser spread (std) 8.6 m
Width folded 2,55 m
Max. operating pressure 365 bar
Pump capacity 100 - 120 l/m
Weight 5908 t
Slewing torque with 2 gears 7,0 mt
Max. outreach (with fly jip) 32,6 m

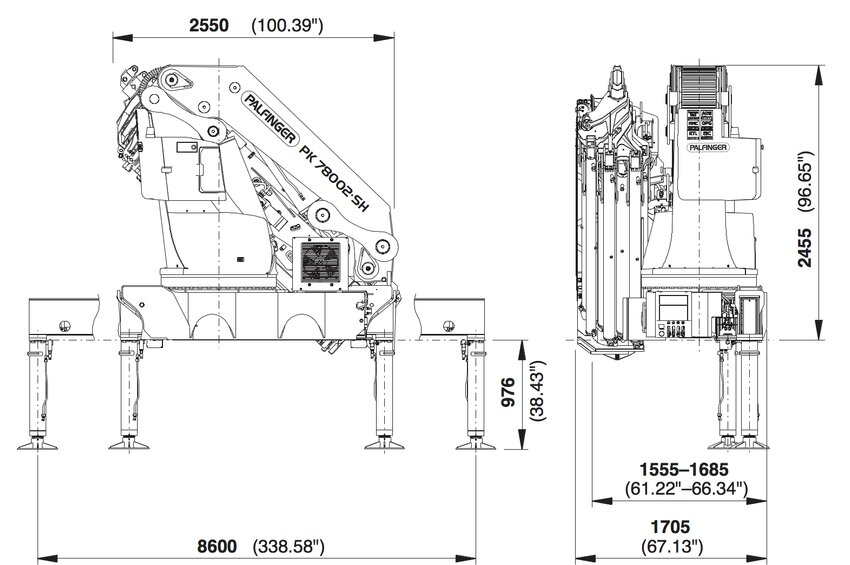

Technical data

Lifting moment Outreach Slewing angle Slewing torque Pressure Pump capacity Crane weight Crane height Crane width Installation width Max stroke length Max. lifting capacity Load vertical
A 73.9 mt 7.6 m ∞ ° 4.5 / 7.0 mt 36.5 Mpa 100-120 l/min 5908 kg 2455 mm 2550 mm 1555 mm 7434.45 mm 23000 kg 10000 kg
B 72.0 mt 9.5 m ∞ ° 4.5 / 7.0 mt 36.5 Mpa 100-120 l/min 6246 kg 2455 mm 2550 mm 1555 mm 9366.45 mm 23000 kg 7700 kg
C 70.2 mt 11.5 m ∞ ° 4.5 / 7.0 mt 36.5 Mpa 100-120 l/min 6580 kg 2455 mm 2550 mm 1555 mm 11368.45 mm 23000 kg 6100 kg
D 69.3 mt 13.7 m ∞ ° 7.0 mt 36.5 Mpa 100-120 l/min 7040 kg 2455 mm 2550 mm 1555 mm 13578.45 mm 22000 kg 4850 kg
E 68.6 mt 15.9 m ∞ ° 7.0 mt 36.5 Mpa 100-120 l/min 7306 kg 2455 mm 2550 mm 1555 mm 15774.45 mm 21500 kg 3950 kg
F 68.0 mt 18.1 m ∞ ° 7.0 mt 36.5 Mpa 100-120 l/min 7529 kg 2455 mm 2550 mm 1655 mm 17963.45 mm 21000 kg 3250 kg
G 67.5 mt 20.4 m ∞ ° 7.0 mt 36.5 Mpa 100-120 l/min 7725 kg 2455 mm 2550 mm 1685 mm 20266.45 mm 20500 kg 2700 kg
